TORR.5 Pendant Direct/Indirect

EOS 2.0 Recessed Headshot.jpg

OPTICS AVAILABLE

Direct: Batwing

Indirect: Batwing

OVERVIEW

  • Efficacy : up to 119 lm/W

  • UGR < 19

  • Distribution: 70/30, 60/40, 50/50, 40/60, 30/70

  • Lumen Package:  763-1050lm/ft

  • Configurations: 4ft, 6ft, and 8ft Individual Units or Continuous Row Lengths Available in 2ft Increments

  • Fixed CCT: 27K, 30K, 35K, 40K

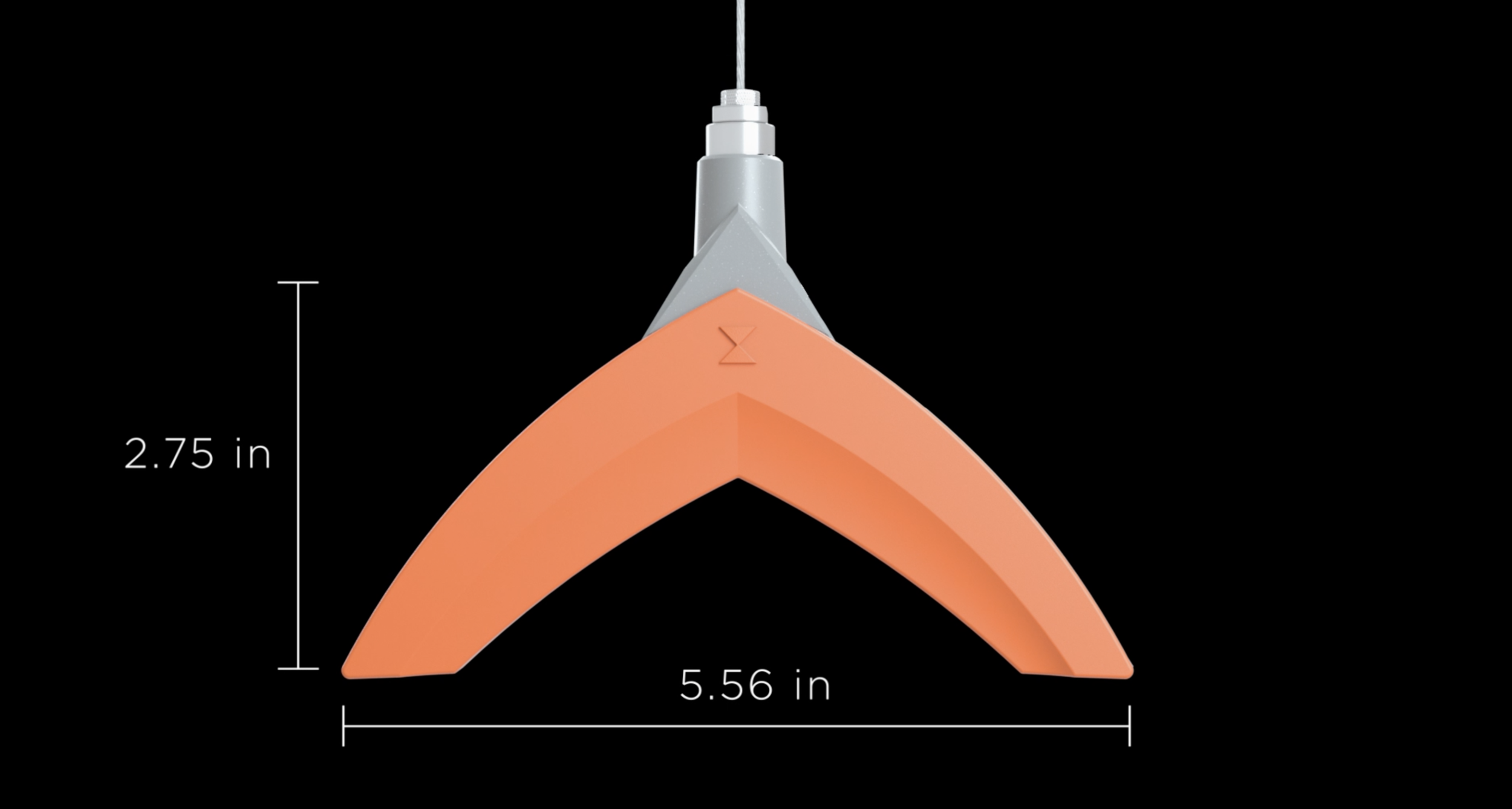

TORR.5

Lighting at its finest. The TORR.5 is a sleek and modern luminaire that utilizes the same integrated anidolic light guide technology into opposing wedge profiles as the AX.5. The TORR.5 reduces glare while it creates a luminaire that appears smaller than its dimensions, all without the harshness that’s typically associated with small apertures.



OPTIONS


TORR.5-Direct Indirect 466_ DISTRIBUTIONa_Template.jpg

OPTICS

Direct: Batwing

Indirect: Batwing



FINISHES

Our finishes are durable polyester powder, low gloss textured paint applied after a multi-stage pretreatment. Standard luminaire finishes include white, silver, and black housings. Standard end cap colors include white, silver, black, and orange.

TORR.5-ENDCAP Finishes.1033.jpg

TORR.5 END CAP FINISHES

Standard endcap finishes include white, silver, black, and LUX orange. Custom RAL colors and simulated woodgrain options are available.


TORR-SPOKE-Hub lineart CROP.jpg

SPOKE CENTER HUB

Introducing the ultimate integration for the TORR.5, the Spoke Center Hub. The Hub seamlessly connects three intelligently designed TORR.5 luminaires to create one magnificently polished display. Once again, LUX Illuminaire has delivered a unique design that marries dramatic aesthetics with remarkable innovation.
